Modern Steel frame Workshop
| MOQ: | 100 PCS |
| Price: | $40-200 |
| Standard Packaging: | Bundles |
| Delivery Period: | 5-15 days |
| Payment Method: | T/T,in advance |
| Supply Capacity: | Excellent |
Detail Information
Place of Origin
Chengdu , China
Brand Name
Shunyao Supply Chain
Usage:
Commercial, Industrial, Residential Buildings
Package:
Steel Pallet
Connection Method:
Bolting
Foundation:
Concrete Foundation
Maintenance Costs:
Reduced
Design Parameter:
Wind Load,Snow Load And Earthquake
Wallmaterial:
Steel Panels
Loadbearingcapacity:
High
Durability:
Long-lasting
Foundationtype:
Concrete Slab Or Pier Foundation
Keyword:
Building Steel Structure
Loadcapacity:
Up To 500 Kg/m²
Installationtime:
Quick Assembly With Prefabricated Parts
Fireresistance:
Excellent
Corrosionprotection:
Galvanized Steel With Anti-rust Coating
Highlight:
modern steel frame workshop
,steel frame building kit
,prefabricated steel workshop
Product Description

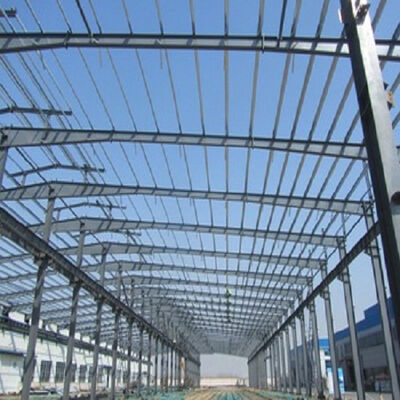

Modern Steel frame Workshop
Steel structure workshop included the main structure (steel beam/girder, steel column/pillar), the secondary structure( roof and wall purlin, steel bracing, tie-bar etc), door and windows, and other accessories.
Steel Structure Wokeshop/ Plants can be widly used in many products and industry, such as chemical industry, heavy industry, machinery plant, textile industry and so on.
Specification
| Main Parts (主要部分) | Item Name (项目名称) | Specification (规格) |
|---|---|---|
| Main Steel Frame | Steel Column | Q235B, Q345B (H shape, Box, Steel pipe, Hot rolled sheet) |
| Steel Beam | Q235B, Q345B (H shape, Steel Truss, Hot rolled sheet) | |
| Supporting System | Brace | Q235B, Q345B(Steel rod, Steel pipe, Angle steel) |
| Roof Purlin | C or Z shape, Steel purlin | |
| Wall Purlin | Q235B, Q345B(C or Z shape, Steel purlin) | |
| wall& roof | wall | Single colorful steel sheet, Sandwich panel with EPS, Rock wool, PU, Glass wool etc., |
| roof | Single colorful corrugate steel sheet, Sandwich panel with EPS, Rock wool, PU, Glass wool etc., | |
| thickness* | 50-250mm | |
| Accessories | Bolts | Ordinary, High strength |
| Gutter | Galvanized Steel plate, Stainless steel | |
| Windows | Aluminum alloy-Glass, Aluminum alloy-shutter, PVC | |
| Doors | Sliding or Rolling door Material customized | |
| Downpipes | PVC pipe, Color steel pipe | |
| Edge Cover | Made of color steel sheet thickness 0.5mm (customized) | |
| Ventilator | Stainless steel | |
| Crane | Crane in 5 tons to 20 tons(As required) |
Feature & advantage
- High strength, can resistance grade 8 earthquake
- Wind resistance, Max 35m/s
- Long life span,can be used more than 50 years;
- insulation; sound insulation, fire insulation, temperature insulation
- Environment friendly, Most of the excess material can be 100% recycled; no waste produced
- Fast construction, time saving and labor saving;
- Customized design, various layout, beautiful appearances, different colors for the walls and roof
- Wide span , single or multiple spans, can have a maximum span distance in 36m without middle columns.
