Modular Steel Wall Formwork Wear Resistant For Vertical Structure Construction
| MOQ: | 100 PCS |
| Price: | $40-150 |
| Standard Packaging: | Bundles |
| Delivery Period: | 5-15 days |
| Payment Method: | T/T in advance |
| Supply Capacity: | Excellent |
Modular Steel Wall Formwork
,Wear Resistant Steel Wall Formwork
,Vertical Steel Slab Formwork

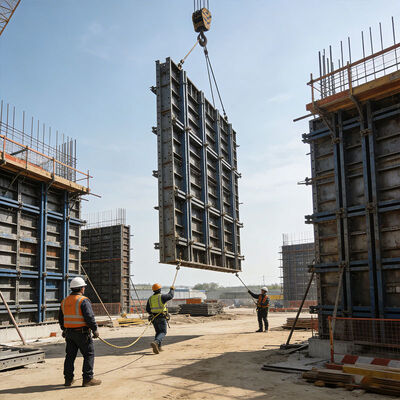

Steel wall formwork is a special system for concrete pouring with modular design, which is specially developed for the construction of vertical structures such as shear walls and retaining walls of modern buildings. The product is made of 6mm high-strength Q355B steel plate as the main body, combined with a special steel skeleton, and the surface is treated with hot-dip galvanization and epoxy spraying to ensure excellent performance and durability in harsh construction environments.
Core parameters:
Standard size: 1200×2400mm/1500×3000mm (can be customized)
Load capacity: side pressure ≥ 85kN/m²
Leveling accuracy: the board surface error ≤ 1.8mm/2m
Turnaround life: standardized use can reach more than 550 times
Core Benefits:
Efficient construction: The patented quick installation system realizes 3-second locking at a single point, and the installation area exceeds 200 square meters in a single day
Precise molding: laser cutting frame and CNC positioning holes, wall verticality error ≤ 3mm/floor height
Safe and reliable: The overall stiffness is increased by 40%, completely eliminating the risk of mold expansion
Economical and environmentally friendly: the single use cost is only 20% of that of wooden formwork, and the material recovery rate is 98%
Technical features:
Intelligent adjustment system: supports 2.5-4.2m height stepless adjustment
Multiple sealing design: EPDM rubber strip maze structure to achieve zero slurry leakage
Digital management interface: Each module has a built-in RFID chip to support the whole process traceability
Strong compatibility: Perfect docking with climbing forms, sliding forms, and various support systems
Applications:
The core of a super-high-rise building
Underground comprehensive pipe gallery
Water conservancy and hydropower projects
Prefabricated component production line
| Material | Steel, stainless steel | Application | Concrete construction | |
| Feature | Easy to assemble, high strength, reusablet | Warranty | 2 Years | |
| Design Style | modern | After-sale Service | Online Technical Support, Onsite Installation |
|
| Project Solution Capability |
3D model design, graphic design |
Place of Origin | Chengdu, China | |
| Brand Name | Shunyao Supply Chain Steel Frame | Attachment | U-bolt, bolts, and nuts | |
| Color | Customer Requirements | Size | Customer s | |
| Variety | Steel formwork systeml | Type | Steel formwork for concrete construction | |
