Prefabricated Steel Frame Workshop Construction Industrial Building Warehouse
| MOQ: | 100 PCS |
| Price: | $40-200 |
| Standard Packaging: | Bundles |
| Delivery Period: | 5-15 days |
| Payment Method: | T/T in advance |
| Supply Capacity: | Excellent |
Commercial Steel Frame Construction
,Steel Frame Construction Lightweight
,Office Parks Steel Frame Structure
Product Description

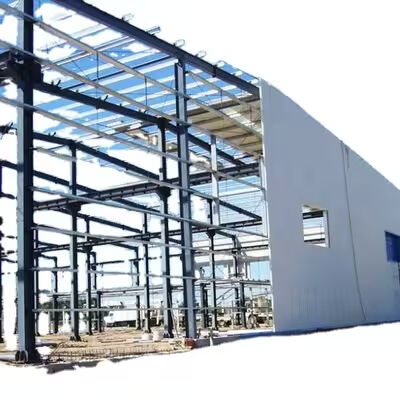

Columns and beams are made of H - section steels (hot - rolled or welded). They are easily bolted on - site. Factory primer, finishing paint, or galvanization is applied for better rust resistance.
Purlin and tie bar form the secondary framing, fixed to columns and beams with common bolts.
Round steel is used for knee bracing and other portal - framing supports, enhancing the stability and durability of the whole structure.
Roofs and walls are covered with color - coated corrugated steel sheets or steel sandwich panels, hot - dipped with zinc - aluminum compound. They protect the building from bad weather and improve its appearance.
Window and door options include Plastic Steel Windows/Aluminum - alloy Windows and Sliding Doors/Folding Doors.
Gutters, downpipes, transparent sheets, ventilators, and bridge cranes can be installed as per client requirements.
Specification
| Items | Details |
|---|---|
| Products | Steel structure workshop |
| Type | As drawings |
| Main Material | Q235B (ASTM A36, S235JR), Q355B |
| Surface treatment | Painting, Galvanized |
| Process-Cutting | Laser cutting, plasma cutting, flame cutting for intricate shapes |
| Forming | Rolling, and bending to meet complex structural designs |
| Welding | MIG,TIG,Submerged arc |
| Machining | Drilling, milling for precise fittings |
Competitive advantage
Besides the Automatic Intelligent Production Line for H beam & Box Column, Sunway is well equipped with PKG Synthetic cutting line, Laser Cutting Machine, Robot Welding Machine, Sawing Machine, Drilling Machine, Hydraulic Press Machine, Punching Machine, realize the scale and high-efficient production of factory intelligent manufacturing.
A customized MES system under developing, which combines TEKLA, Solidworks, and normal MES software to achieve centralized dynamic control of the entire process of order design, production, and erection,achieving full traceability of product component cycles.
SUNWAY introduce industry-leading 3D design software, which has powerful parametric design function and visual effect display. Through these software, designers can quickly build complex steel structure models, simulate structural performance under different working conditions, identify and solve potential problems in advance.
