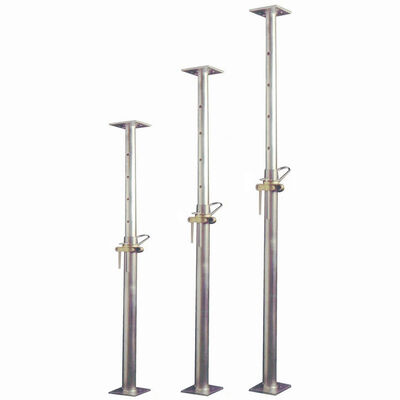

Heavy Duty Adjustable Steel Shoring Steel Prop Scaffolding Steel Props
| MOQ: | 100 pcs |
| Price: | $5-15 |
| Standard Packaging: | Bundles |
| Delivery Period: | 5-15 days |
| Payment Method: | T/T |
| Supply Capacity: | Excellent |
Detail Information
Place of Origin
Chengdu , China
Brand Name
Shunyao Supply Chain
Cost:
Moderate To High
Size:
Customized
Installationtime:
Typically 2-4 Weeks
Durability:
Long-lasting
Structuretype:
Frame
Accessoriesincluded:
Base Plates And Head Plates
Compliance:
Meets EN 1065 Standards
Standardscompliance:
EN 1065 / BS EN 12812
Material Grade:
Q355B, Q235B
Loadbearingcapacity:
High
Material:
Steel
Application:
Building Construction Support Material
Constructionspeed:
Fast
Seismicresistance:
Engineered For Earthquake Resistance
Threadtype:
Acme Thread For Fine Adjustment
Highlight:
heavy duty steel shoring prop
,adjustable scaffolding steel props
,steel shoring prop with warranty
Product Description
PRODUCT INTRODUCTION:
Adjustable scaffolding shoring post, adjustable shoring posts, metal shoring pole
Details of adjustable shoring props
- Common height range(closed-extended): 1.6 -2.9m ; 1.7 -3.0m ; 1.8-3.2m ; 2.0-3.6m ; 2.2-4.0m ; 2.4-3.9m ; 2.5-4.5m ; 2.6-5.0m ; 3.0-5.0m ; 3.2-6.0m
- Diameter range on tube ( inner /outer): 40/48mm ; 48/56mm ; 48/60mm
- Thickness range on tube: 1.6mm; 1.85mm; 2.0mm; 2.5mm; 3.0mm
- Type: Heavy duty scaffolding prop/light duty scaffolding prop
- Surface finish: painted, pre-galvanized, hot dip galvanized
- We can provide all kinds of scaffolding props with high quality at low price
- Material: Q235 for welded pipe and 20# for seamless pipe
- Produced in our own factory,can control the quality much better
- Samples are available
- Test: SGS, BV or as per your request
- ISO 9001-2000 approved.
- Performance:good bearing capacity,durable & stable
| Picture | Product Name | Min | Max | Internal Tube | External Tube |
|---|---|---|---|---|---|
 Heavy Duty Prop |
1.8m | 3.5m | 48*2.0mm | 60*2.0mm | |
| 2.0m | 3.6m | 48*2.0mm | 60*2.0mm | ||
| 2.2m | 3.9m | 48*2.0mm | 60*2.0mm | ||
| 2.2m | 4.0m | 48*2.0mm | 60*2.0mm | ||
| 3.0m | 5.0m | 48*3.0mm | 60*3.0mm |
| Picture | Product Name | Min | Max | Internal Tube | External Tube |
|---|---|---|---|---|---|
| Light Duty Prop |
1.7m | 3.0m | 40*1.8mm | 48*1.8mm | |
| 1.8m | 3.2m | 40*1.8mm | 48*1.8mm | ||
| 48*1.8mm | 56*1.8mm | ||||
| 2.0m | 3.6m | 40*1.8mm | 48*1.8mm | ||
| 48*1.8mm | 56*1.8mm | ||||
| 2.2m | 3.9m | 48*1.8mm | 56*1.8mm | ||
| 4.0m | 40*1.8mm | 48*1.8mm | |||
| 4.0m | 48*1.8mm | 56*1.8mm |
| Picture | Product Name | Min | Max | Internal Tube | External Tube |
|---|---|---|---|---|---|
| Push-Pull Prop |
2.2m | 4.1m | 48*2.0mm | 60*2.0mm | |
| 2.5m | 4.5m | 48*2.0mm | 60*2.0mm | ||
| 3.0m | 5.0m | 48*2.0mm | 60*2.0mm |
| Picture | Product Name | Min | Max | Internal Tube | External Tube |
|---|---|---|---|---|---|
| Folding Tripod |
M48*1250mm | ||||
