Hot Dip Galvanization Q235B Steel Tube Scaffolding Connectors Malleable Cast Iron

Scaffold fasteners are the core connecting components of building support systems, specifically designed to provide secure and reliable rigid connections for steel tube scaffolding. The products are made of malleable cast iron (KT-33 grade) or Q235B steel, treated with hot-dip galvanization or electrophoretic anti-rust coating, ensuring long-term use in harsh construction environments.

Main Types and Specifications:

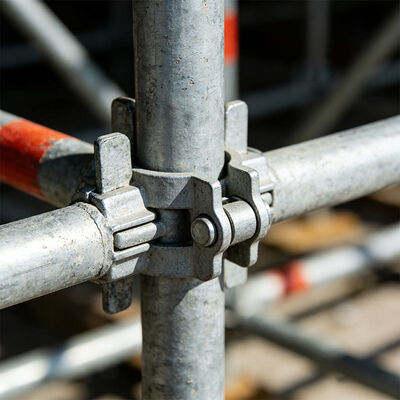

Right Angle Coupler: Used for vertical cross connections of steel tubes, slip resistance ≥10kN

Swivel Coupler: Used for steel tube connections at any angle, breaking torque resistance ≥25N·m

Butt Coupler: Used for longitudinal extension of steel tubes, tensile strength ≥4kN

Cup Coupler Node: Socket-type connection, single node load capacity ≥60kN

Core Features:

Safe and Reliable: Triple lock design ensures zero looseness in connections

Easy Installation: Installation time per coupler ≤15 seconds, no special tools required

Durable: Galvanization thickness ≥80μm, normal service life 8-10 years

Universal Compatibility: Perfectly fits Φ48.3×3.2mm standard scaffold tubes

Technical Advantages:

Precision casting process ensures dimensional tolerance ≤0.5mm

Reinforced T-bolt design increases slip resistance by 40%

Patented anti-loosening nut design prevents accidental detachment during high-altitude work

Capable of withstanding 6,000 cycles of fatigue testing, safety factor up to 2.5 times

Applications:

External scaffolding for building construction

Indoor full-frame support for renovation work

Bridge engineering support systems

Temporary structures for stage setups

The product meets the national GB24911 standard and the European EN12811 certification, with each batch passing third-party inspections. Using an intelligent packaging system (20 pieces per standard bag) combined with QR code traceability, the product's entire lifecycle can be managed. Actual use has shown that this coupler system can increase scaffolding assembly efficiency by 35% and reduce material waste by 50%.
